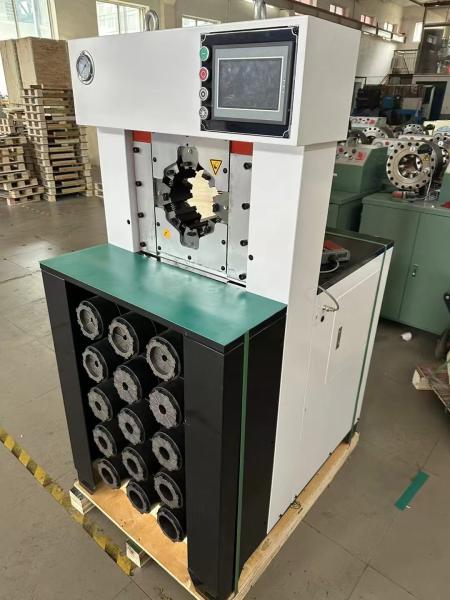

3-Inch Hydraulic Hose Crimping Machine 650T with PLC Control

Brand Name : FY

Model Number : FY-CBK-120

Certification : CE

Place of Origin : Shanghai,China

MOQ : 1 set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 300 sets per month

Delivery Time : 2-7 working days

Packaging Details : export standard wooden box

Weight : 1250kg

Condition : New

Dimension(l*w*h) : 1000*800*1630MM

Warranty : 1 Year

After-sales service provided : Video technical support,Online support

Voltage : 380V,Depend on client demand

Power(w) : 5.5KW

Crimping force : 1.5MT

Color : Black/Blue etc or custom

Crimping range : 6-76mm,1/4" to 3'',1/4''-3''

Type : Hydraulic Crimping Tools

Application : Crimp Hose

Free dies : 15 Dies

Rated pressure : 315 Bar

Keywords : 3 inch hydraulic hose crimping machine

HIGH LIGHT : car ac hose crimping machine, AC Hose Crimping Machine, 3 inch automotive ac crimping tool

Product Name : Super Thickness Model 3 Inch With 15 Dies 6-76mm Black Color PLC Control System hydraulic Hose Crimping Machine With Fast Change Mould Tools Withhold Faster Crimping Force 650T Hose Crimper

Contact Now

Super Thickness Model 3 Inch With 15 Dies 6-76mm Black Color PLC Control System hydraulic Hose Crimping Machine With Fast Change Mould Tools Withhold Faster Crimping Force 650T Hose Crimper

Super Thickness Model 3-Inch Hydraulic Hose Crimping Machine

Introducing the Super Thickness Model 3-Inch Hydraulic Hose Crimping Machine, engineered for exceptional performance and versatility in hose crimping applications. This advanced machine features 15 interchangeable dies, accommodating hoses ranging from 6mm to 76mm, making it suitable for various industrial tasks.

Key Features

Robust 3-Inch Design: Built with super thickness for enhanced durability, this machine is capable of handling heavy-duty crimping tasks with ease.
15 Interchangeable Dies: The wide selection of dies allows for precise crimping across multiple hose sizes, ensuring versatility for different projects.
PLC Control System: Equipped with a programmable logic controller (PLC), the machine offers precise control over the crimping process, enhancing accuracy and efficiency.
Fast Change Mould Tools: The quick-change die system allows for rapid adjustments, minimizing downtime and boosting productivity.
High Crimping Force: With a powerful crimping force of 650 tons, this machine guarantees secure fittings, making it ideal for high-pressure applications.
Sleek Black Finish: The modern black color not only offers a professional appearance but also ensures resistance to wear and tear.

Advantages

Increased Efficiency: Designed for rapid crimping, this machine improves workflow and reduces operational time by 35%.
User-Friendly Operation: The intuitive interface and PLC control make it easy for operators to manage tasks with minimal training.
Versatile Applications: Suitable for a range of hoses, including hydraulic and industrial applications, this crimper adapts to various needs seamlessly.
Safety Features: Engineered with multiple safety mechanisms, the machine ensures operator protection during use.

crimping range/skiving range	6-76mm(1/4''-3''inner diameter of hose)
quantity of dies	15 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L/16L(Optional)
system pressure	31.5Mpa/315 bar
motor power	5.5kw,3 phase
voltage	380V/220v depend on client demand
crimping force	1500T
work efficiency	pcs/h
maximum open diameter	158mm
the max open tolerance	±53mm
package dimension	11009001730mm
machine dimension	10008001630mm
Net weight	1250kg
Gross weight	1300kg

TECHNICAL DATA

Model	FY-CBK-120 AC Hose Crimping Machine
Crimping Range	6-76(mm)
Crimping Force	1500(T)
Hose Size	1/4-3(inch)
Max. Opening	158(mm)
Die Sets	15
The Max Open Tolerance	+53mm
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Output Volume Of Pump	10L/16L
Standard Voltage	380(V)
Motor Power	5.5(KW)
Length	1000(mm)
Width	800(mm)
Height	1630(mm)
Weight	1250(KG)

3-Inch Hydraulic Hose Crimping Machine 650T with PLC Control

NOTE

• " * " for non standard mold

• Customized die sets are available

• Special voltage 380V are availbale

► SUPER THIN CRIMPING HEAD

New cylinder making technology which seprate the cylinder with the crimping head, enbles a wide working stroke of the working area, so that the machine can be able to crimp elbow or irregular tubes

3-Inch Hydraulic Hose Crimping Machine 650T with PLC Control

► NEW DIE SETS

15 die sets, range from 6mm to 76mm, suitable for hose from 1/4 to 3 inch with six spirals crimping

3-Inch Hydraulic Hose Crimping Machine 650T with PLC Control

► HEAVY DUTY MACHINE RACK

With big cylinder hydraulic system, the machine capable of pressing hose up to 6 spirals

3-Inch Hydraulic Hose Crimping Machine 650T with PLC Control

► BIG DOUBLE USE FOOT PEDAL

The foot pedal frees both of the operator's hand and improve the working efficiency much

3-Inch Hydraulic Hose Crimping Machine 650T with PLC Control

► OEM SERVICE AVAILABLE

3-Inch Hydraulic Hose Crimping Machine 650T with PLC Control

► APPLICATION SHOW

FY-CBK-120 is especially designed for big elbow fittings crimping, it is wodely used in car ac hose, hydraulic oil hose, air hose, water pipe, industrial hoses, wires and cables crimping work.
